Fiber 1000mbps Internet Connection Available in All Schools – Geneseo District 228

This year District 228 has upgraded some core network infrastructure to utilize its fiber WAN connection now running at 1000mbps up/down.  This is a significant step forward in network bandwidth and really allows our district fleet of over 1100 Chromebooks, 500 iPads, and 300 Laptops/Desktops  to make full use of cloud based / internet based resources.

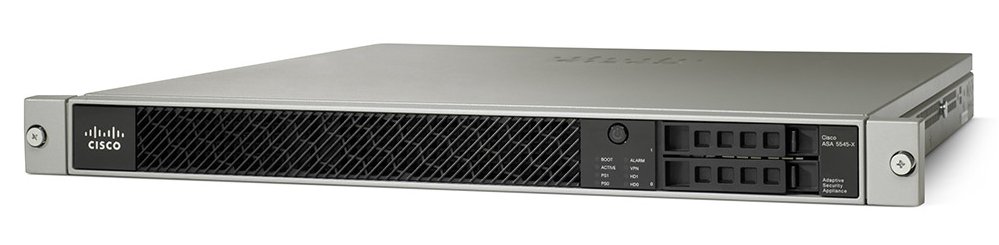

To make full use of 1000+ mbps speeds some network pieces needed to be upgraded. Our old network Firewall was a cisco ASDM 5520 which maxes out at 450mbp.  This device has been replaced with the Cisco ASDM 5545X which is capable of handling 2000mpbs up and down.

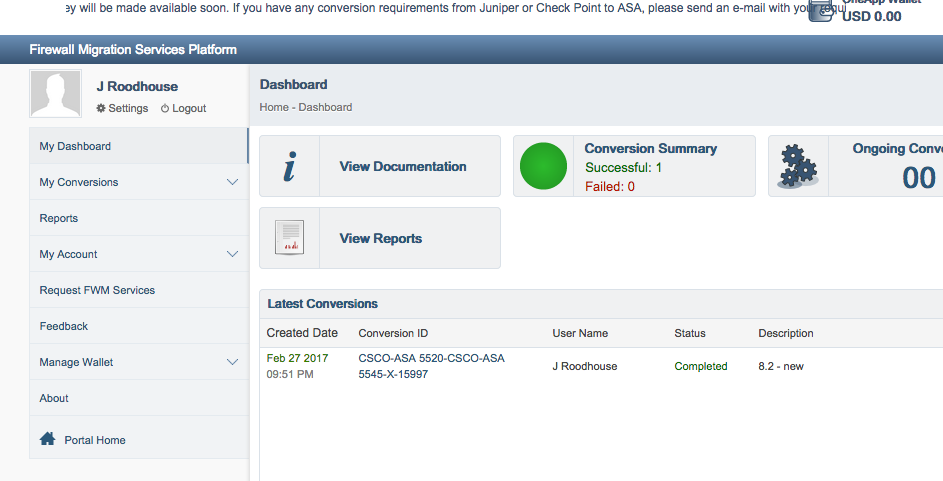

Part of this upgrade involved moving reconfiguring the device for the newer ASA software 9.2.2.  Upgrading from 7.x ASA software requires quite a few configuration changes however I found a cool tool that handles most of it for you https://fwm.cisco.com/auth.do.



This tool successfully converted my 8.2 ASA configuration to the newer format 9.2.2 almost perfectly.  I only had to make two minor changes and clear our a couple redundant lines.

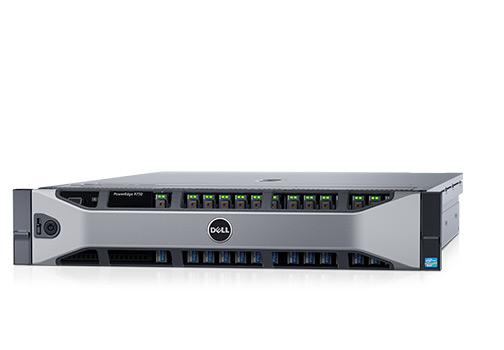

To fully utilize 1000mbps speeds I changed our content filter to a new machine with upgraded specs.  We use the Untangle software running on a Dell PowerEdge R730 Server.  I have been happy with Untangle as a content filter along with providing a few additional security functions.  Our new Dell PowerEdge R730 has 64 Gigs of RAM and runs a Intel based SSD RAID 10 array which passes traffic with all modules loaded above 2000mbps.







With Wireless 802.11AC provided district wide and all device allowed access policy District 228 handles over 2500-3200 internet connected devices during a normal school day.

As of 8:20 AM today we have 2,685 internet devices currently active on our network.
